Description

Key Features & Specifications

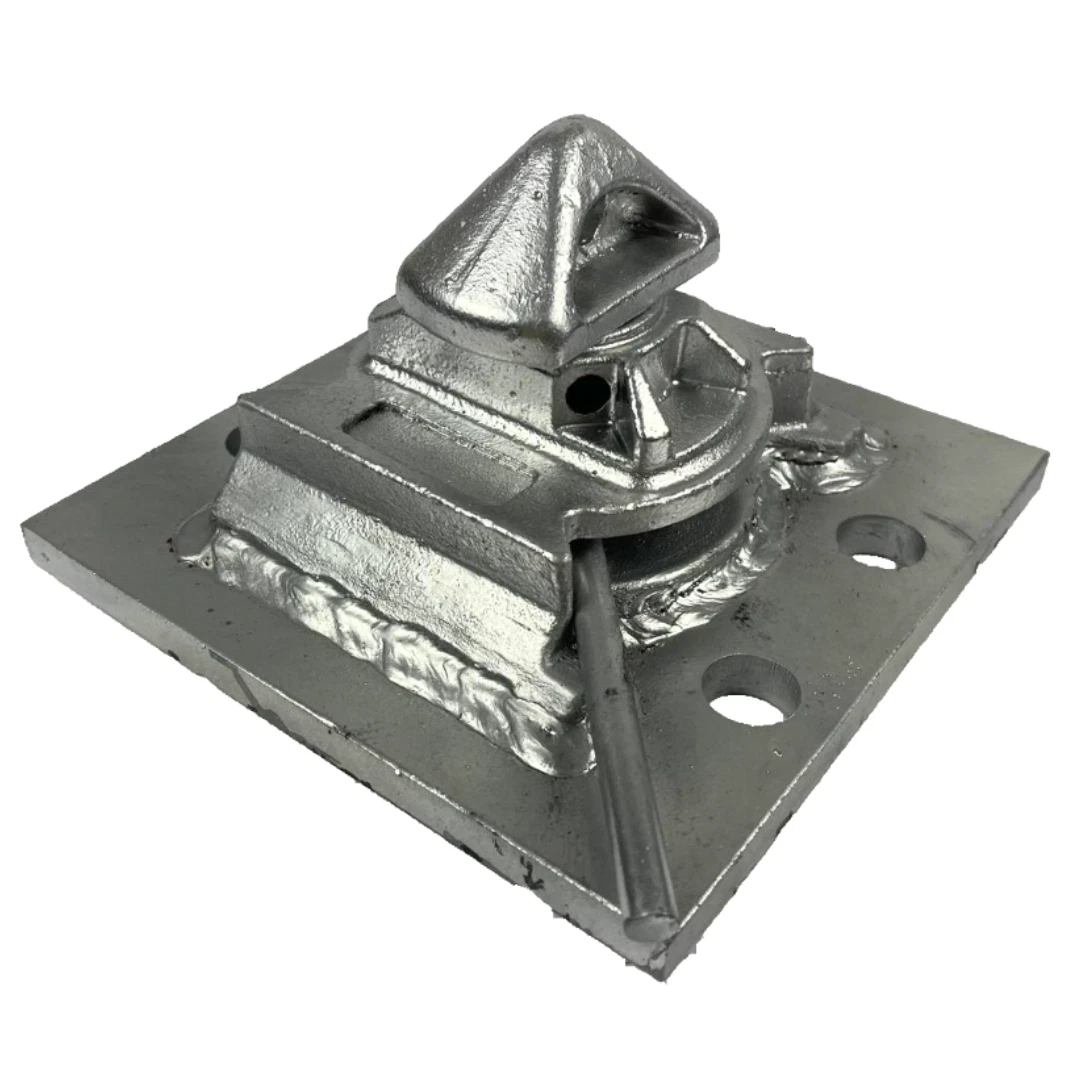

Product Type: ISO Standard Container Twistlock with Bolt-Down Fixing Plate
Material: Forged high-strength steel, hot-dip galvanized or powder-coated finish for corrosion resistance
Plate Dimensions:
Length: 178 mm (7 in)
Width: 120 mm (4.7 in)
Height: 95 mm (3.7 in)
Plate Thickness: 12–15 mm
Weight Capacity: Up to 10–12 tons per twistlock (varies by model)
Mounting Method: Bolt-down design with M20 anchor bolts (not included)
Operation: Manual twist mechanism with 90° rotation for secure lock/unlock
Compatibility: Fits all ISO standard container corner castings (20ft, 40ft, 45ft, High Cube)
Certification: Conforms to ISO 1161 and CSC safety standards
